Universal Field Panel™ Gateway
The gateway at the heart of every Universal Field Panel™, from the edge to the enterprise.

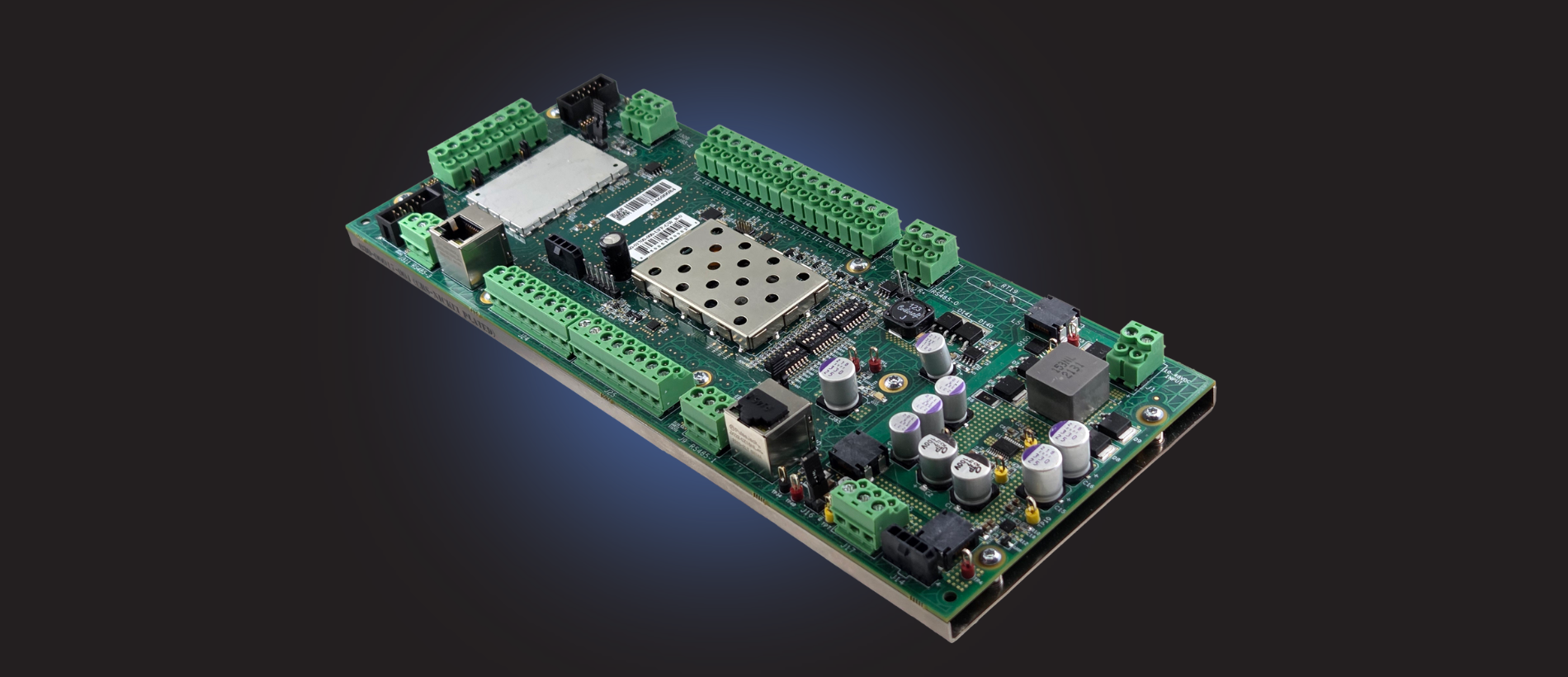

The UFP Gateway is the open-architecture IIoT device at the core of every Universal Field Panel. It delivers trustworthy, authenticated data from the far edge to the enterprise, hosts edge applications in Docker containers, and powers and manages up to 16 Expansion Modules.
- Category
- Intelligent Controllers
- Certifications
- UL 294 · UL 2610
- Configurations
- 1
One gateway, a whole site
A single UFP Gateway supports 16 DESI channels with up to 64 DESI devices, 128 sensor inputs or 64 control relays, four RS-485 serial ports with four OSDP readers each, and up to 16 Expansion Modules downstream. There is no limit to the number of gateways in a system.
Compute at the edge
The gateway runs Ubuntu Core with PostgreSQL in TPM-protected storage and Docker container services for third-party applications. MQTT and an open API and SDK let COTS and GOTS software run at the edge, reducing server load, power and cooling in the operations center.
Hardened by design
TPM 2.0, secure boot, secure key storage, signed firmware, antivirus and an RMF STIG compliant operating system protect the gateway itself. All communication uses FIPS 140-3 compliant TLS with ECC-P256, and the device ships from a secure, authenticated supply chain made in the USA.
- 16 DESI channels, up to 64 DESI devices, any mix
- 128 sensor inputs or 64 control relays per gateway
- Four RS-485 ports, four OSDP readers each
- Docker, MQTT, PostgreSQL and open API at the edge
- Powers and manages up to 16 Expansion Modules
Specifications
Gateway specifications from the UFP data sheet. Download the data sheet for the complete document.
| Parameter | UFP-GW |
|---|---|
| Capacity | |
| DESI channels | 16, supporting 64 DESI, any mix |
| Inputs and outputs | 128 sensor inputs or 64 control relays |
| Serial ports | 4 x RS-485, two field changeable to RS-232 |
| Expansion downlink | 1 x RS-485, 1 Mbit/s at 100 m, or 115 k at 2,000 ft |
| OSDP readers | 4 per RS-485 serial port |
| Expansion modules | Up to 16 per gateway |
| Platform | |
| Operating system | Ubuntu Core 22.04.5 LTS |
| Communications | 2 x 1000BaseT Ethernet |
| Services | MQTT, open API and SDK, PostgreSQL, Docker containers |
| Security | |
| Cyber security | TPM 2.0, secure boot, secure key storage, signed firmware, antivirus, RMF STIG compliant OS |
| Cryptography | FIPS 140-3 compliant TLS, FIPS-186, FIPS-198, NIST SP 800-90B, SHA-256 OTP, ECC-P256 |
| Physical and electrical | |
| Power input | 10 to 48 VDC |
| Power output | 12 VDC at 4 A |
| Power consumption | 450 mA at 12 VDC (5.4 W); 350 mA at 24 VDC (4.2 W) |
| Form factor | 265.5 x 107.5 mm, 648.5 g |
| Environmental | -40 to 70°C, 10 to 90% RH; heatsink option to 85°C |
| Compliance | |
| Safety | UL294, UL2610, UL62638, RoHS |
| Supply chain | Made in the USA, NDAA, TAA, BAA |
Downloads
Data sheet, brochure and specification documents for this product.
A&E resources · 4 available
Specification-ready files for this product. Download what you need without leaving the page.
Where it sits
The UFP Gateway sits in Acquisition and Control as the panel’s brain. It authenticates every downstream device and module and carries verified data over Ethernet to the operations layer.
- Enterprise Consumers Purdue 4 to 5
- IT and OT Operations Purdue 2 to 3
- Acquisition and ControlUniversal Field Panel™ Gateway Purdue 1
- OT Edge Purdue 0
