Intelligent Controllers

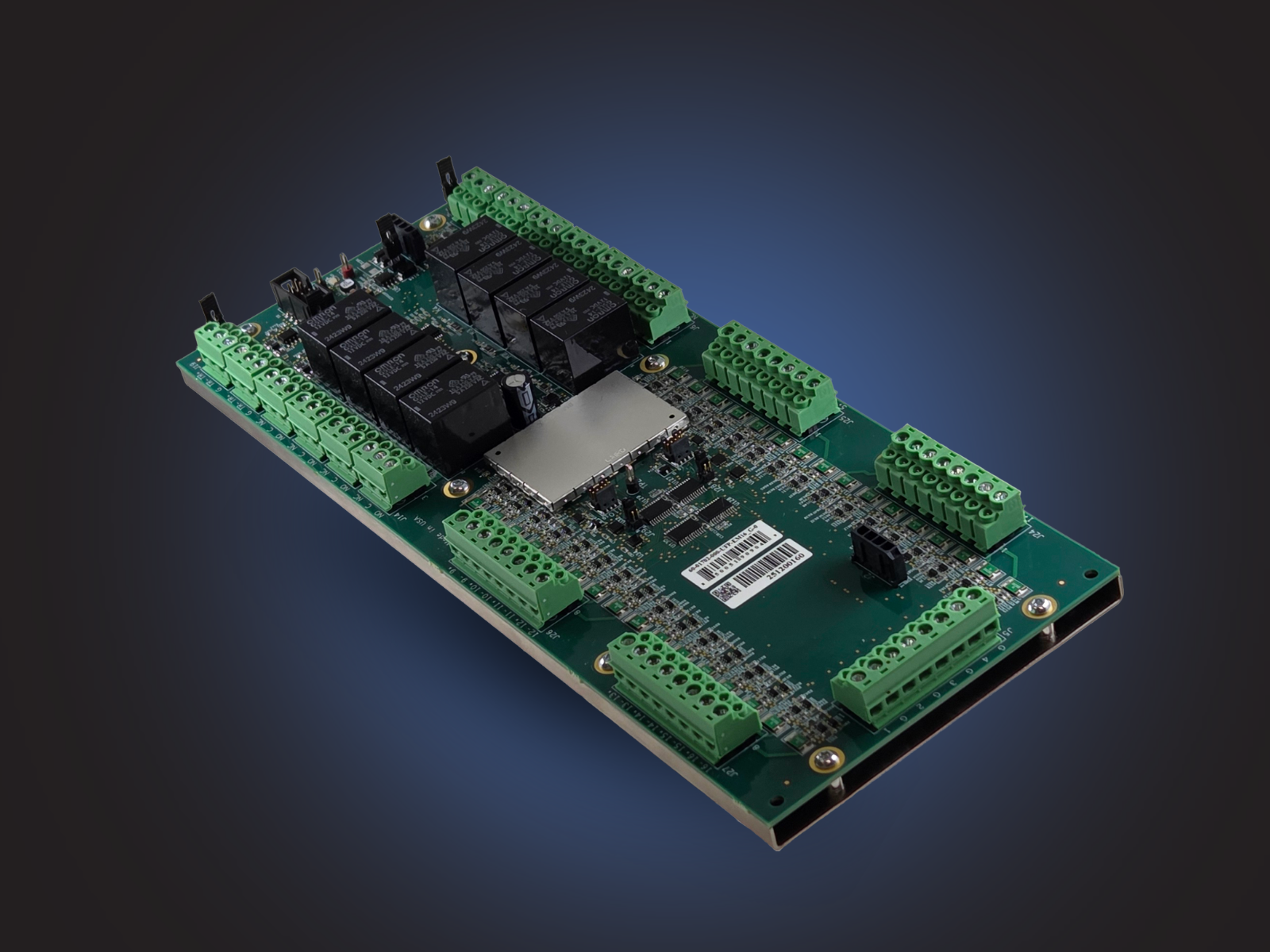

Universal Field Panel™ Expansion Modules
Add inputs, outputs and readers to a Universal Field Panel™ as the site grows.

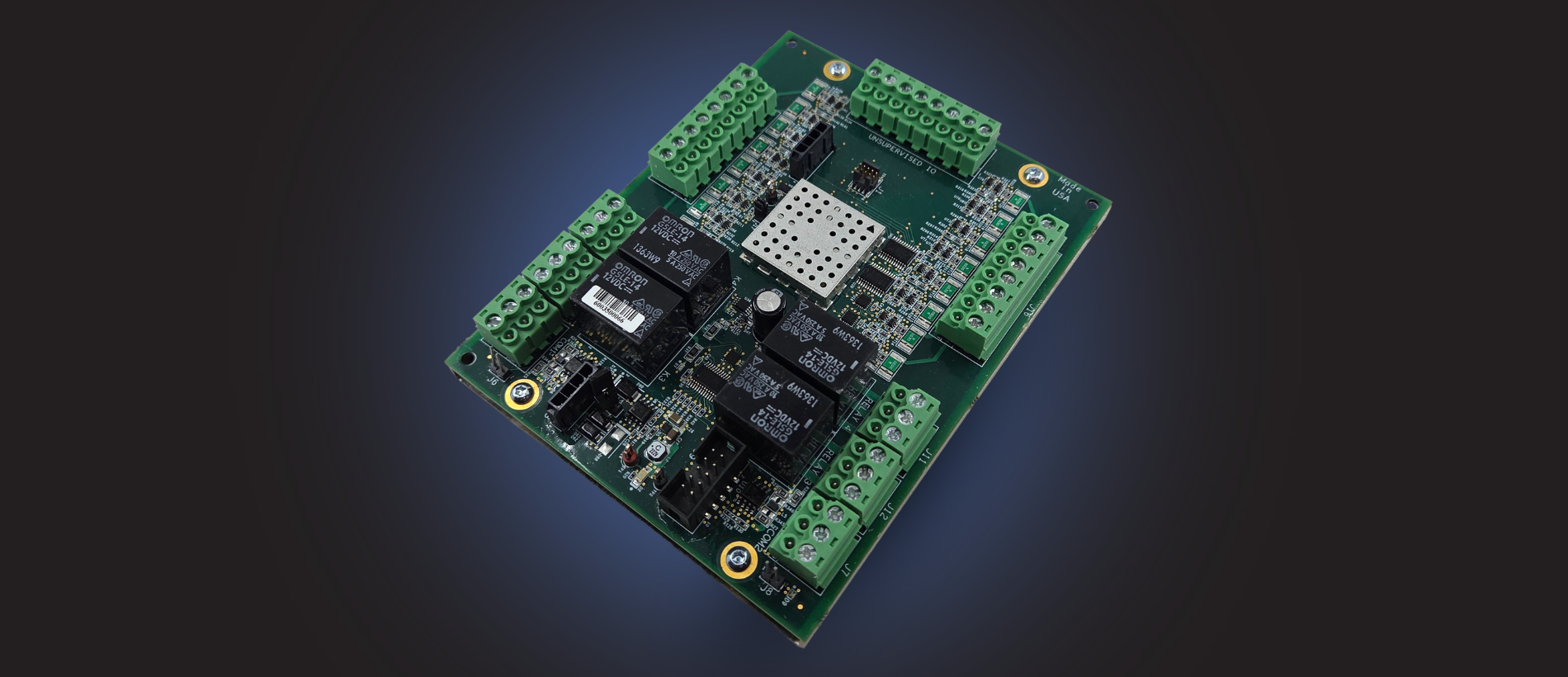

UFP Expansion Modules scale a Universal Field Panel for high-density or distributed sites. The EM-8 and EM-16 add DESI channels, legacy supervised inputs, relays and reader ports under a single gateway, and the PM-4 power module reaches modules deployed away from it.
- Category
- Intelligent Controllers
- Certifications
- UL 294 · UL 2610
- Configurations
- 3
Grow input by input
Up to 16 modules sit under one gateway in any mix. The EM-16 adds 16 DESI channels for up to 64 DESI devices, 128 inputs or 64 relays, four serial ports and eight power relays. The EM-8 adds half of each. Both accept legacy supervised inputs where DESI is not yet installed.
Readers and relays included
Each module provides OSDP readers at four per serial port, or one legacy Wiegand reader per port, plus SPDT Form C power relays rated 10 A at 120 VAC. Supervision ranges cover 100 ohm to 50 kilohm loops, with OEM custom options from the factory.
Distributed when needed
The PM-4 power module takes 10 to 48 VDC and feeds 12 VDC at 4 A to modules deployed remotely from the gateway, over an RS-485 uplink at 1 Mbit/s to 100 m or 115 k to 2,000 ft. All modules share the gateway’s cryptography, standards and supply chain.
- Up to 16 modules per gateway, any mix of EM-8 and EM-16
- EM-16: 64 DESI, 128 inputs or 64 relays, four serial ports
- EM-8: 32 DESI, 64 inputs or 32 relays, two serial ports
- Legacy supervised inputs accepted in place of DESI
- PM-4 power module for remote module deployment
Specifications
Expansion and power module specifications from the UFP data sheet. Download the data sheet for the complete document.
| Parameter | UFP-PM-4 | UFP-EM-8 | UFP-EM-16 |
|---|---|---|---|
| Capacity | |||
| DESI channels | None | 8, up to 32 DESI | 16, up to 64 DESI |
| Inputs and outputs | None | 64 inputs or 32 relays | 128 inputs or 64 relays |
| Supervised legacy inputs | None | 8 | 16 |
| Serial ports | 1 x RS-485 uplink | 2 x RS-485 | 4 x RS-485 |
| OSDP readers | None | 4 per serial port | 4 per serial port |
| Power relays | None | 4 SPDT Form C | 8 SPDT Form C |
| Unsupervised inputs | 4 | 4 | 4 |
| Electrical | |||
| Power input | 10 to 48 VDC | 12 VDC nominal from gateway or PM-4 | 12 VDC nominal from gateway or PM-4 |
| Power consumption | 20 mA at 12 VDC | 4.8 W at 12 VDC | 6 W at 12 VDC |
| Power output | 12 VDC at 4 A | None | None |
| Physical | |||
| Form factor | 52.5 x 107.5 mm, 167.5 g | 139.5 x 107.5 mm, 367 g | 265.5 x 107.5 mm, 692.5 g |
| Environmental | -40 to 85°C, 10 to 90% RH | -40 to 85°C, 10 to 90% RH | -40 to 85°C, 10 to 90% RH |
| Mounting | DIN rail TS-35; wall mount optional | DIN rail TS-35; wall mount optional | DIN rail TS-35; wall mount optional |
| Compliance | |||
| Safety | UL294, UL2610, UL62638, RoHS | UL294, UL2610, UL62638, RoHS | UL294, UL2610, UL62638, RoHS |
| Supply chain | Made in the USA, NDAA, TAA, BAA | Made in the USA, NDAA, TAA, BAA | Made in the USA, NDAA, TAA, BAA |
Downloads
Data sheet, brochure and specification documents for this product.
A&E resources · 4 available
Specification-ready files for this product. Download what you need without leaving the page.
Where it sits
Expansion Modules sit in Acquisition and Control beside the gateway, extending its authenticated inputs, outputs and readers across a building or a remote enclosure.
- Enterprise Consumers Purdue 4 to 5
- IT and OT Operations Purdue 2 to 3
- Acquisition and ControlUniversal Field Panel™ Expansion Modules Purdue 1
- OT Edge Purdue 0
