PSG is a Provider of Electronic Security Solutions for the protection of DoD Critical Assets and Key Infrastructure Projects. Able to support large programs around the globe.
PRODUCTS: Our video management heritage comes from the development of highly complex Intelligent Traffic and Video Management Solutions deployed around the Globe. Since 2005 PSG has focused on applying that background to securing critical infra-structure and key industrial assets. The PSG team expanded this capability to providing turn-key solutions including system design, installation, support, training and maintenance for some of our Governments most sensitive and critical assets. This includes Video Surveillance Management, Classified Communications Networks, DoD Base-wide Intrusion Detection and Access Control platforms. The PSG team delivers technologically advanced systems at an economical cost for asset protection and peace of mind. Our services range from complex enterprise-wide solutions to stand-alone custom projects that focus on the following areas:
-

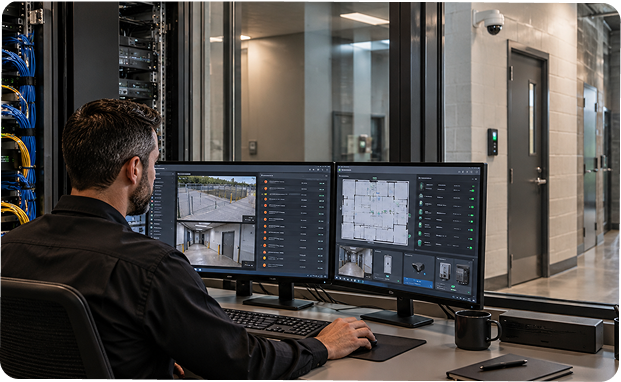

Video Management System (VMS)– The Video Image Control and Display System (VICADS®) operates on a Hardened Platform, is Nuclear Certified and provides a video over IP solution for using existing network equipment and infrastructure to control and monitor video cameras. Video surveillance and camera control is available to any authorized workstation connected to the network. Video can be digitally recorded to a central storage area for archival or VICADS is a highly versatile Video-over-IP hardware and software solution system for viewing and distributing real-time video over existing equipment and infrastructure.
Product Spec Sheets:
-

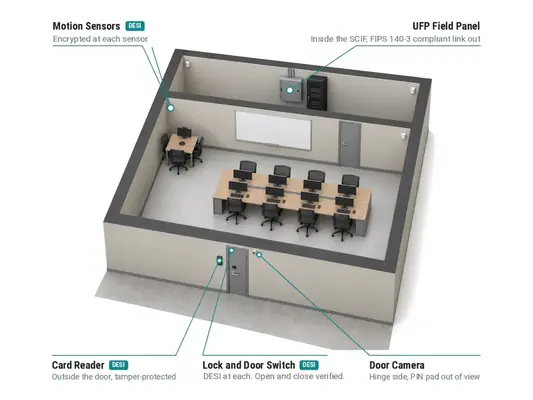

Electronic Security Solutions – Intrusion Detection (IDS) & Access Control (AC) – PSG possesses extensive background and experience in all facets of an electronic security solution meeting required protection for critical assets. This includes integrated IDS/AC platforms certified for all asset levels of protection PL1-PL4 as well a Nuclear (PL1N) applications. PSG also offers “Talon” a ultra-high security standards and encryption compliant approach to deliver high definition (1080p) real time video and control data over an IP network coupled with sensor alarm management inputs effectively integrating secure data into the Command and Control Display equipment. The device offers an unrivaled level of security and is not susceptible to spoofing or snooping.
-
Talon – is a ruggedized, multi-function ultra-high security and surveillance appliance providing standards compliant, secure delivery of video, audio, sensor, control and data over an IP network. The end user can rest assured that their sensitive and critical information is reliably transported and securely delivered.
The device meets stringent Federal Information Processing Standard (FIPS) Publication 140-2, level 2 encryption and data validation standards as well as provides intrinsic physical security mechanisms at the device. Talon combines these features with secure boot, secure clock and a tamper proof enclosure capable of zeroing memory containing critical security parameters. It functions either as a high definition (1080p) HD-SDI or as a standard definition NTSC/PAL video encoder which is ONVIF Profile S conformant. Talon delivers video at full frame rate for up to two simultaneous analog inputs or a single HD input using Motion JPEG (MJPEG) or H.264 baseline profile encoding. The device supports robust configuration parameters such as constant or variable bit rate (CBR/VBR), video profiles and multi-streaming capabilities with variable frame rates. Talon also supports ONVIF Profile G for interfacing with the optional edge recording capabilities, but the product is not fully Profile G conformant. Talon features a high bandwidth gigabit SFP network interface, which supports communications (unicast or multicast) over existing TCP/IP backbones using category 6 cables or optional multi-mode/single mode fiber optic connections. It features a second 10/100 RJ-45 network input port allowing the device to simultaneously function as a data encryption unit by transparently passing traffic from non-secure IP devices through the encryption engine. Talon is capable of full duplex audio support for intercom or audio surveillance applications and offers an RS-232/422/485 serial data bus for transfer of control signaling for pan-tilt-zoom cameras as well as building automation devices. It delivers four supervised multistate inputs, two relay control outputs and offers a wide range of operating power and temperature ranges perfectly suited for external deployments.
Product Spec Sheet:
TALON -

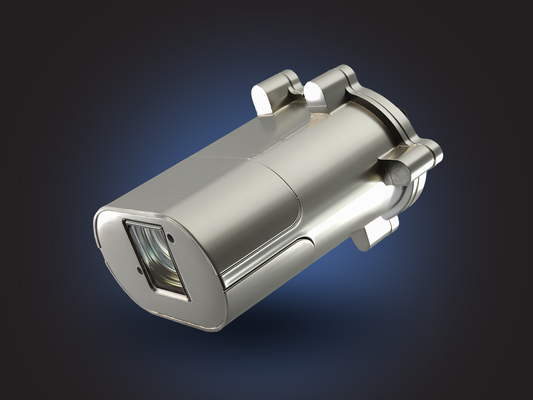

Scene Authentication – is a PSG Patented product which provides real-time video images (scene authentication), via an encrypted communications link. Scene Authentication continuously verifies an incoming video signal accurately depicts the viewed scene, ensuring the signal has not been substituted (otherwise tampered with). It works through use of an encrypted, external light source, which is inserted into the video scene by an active transmitter and subsequently read by a receiver. The transmitter sends an encrypted coded signal which carries: time, spatial positioning, global positioning and unique identification information.
Product Spec Sheet:
Scene Authentication -
Custom Equipment Enclosures – With ease of installation in mind, the PSG family of custom electrical enclosures is revolutionary. Our design provides reliable, repeatable results reducing on-site installation labor hours and a proven reduction in field errors. Ranging from small to large form factors and using UL listed components, the PSG product is designed for reliability, standardization, ease of installation, service-support and maintainability.
Product Spec Sheet:
Custom Equipment Enclosure -
Supplier of 3rd Party Platforms and Sensor Systems – PSG has an extensive network of Strategic Partners and can provide a wide range of security system solutions. We are a trusted partner with some of the World’s largest product manufactures and service organizations.
- Services:
- Training: PSG offers fully trained and certified staff:
- VICADS – Video Management System
- Vindicator – IDS/ACS systems
- Cyber Security & Infrastructure – Design build capable with information Assurance (IA) Certified Staff.
- Security Systems and Design – Via Subject Matter Experts
- Services: Turnkey capabilities to address all requirements:
- System Design
- Specification Writing
- Site Surveys
- Product Requirements
- Installation
- Independent System Test, Review and Acceptance
- Site Support
- Maintenance Contracts
- Cyber Security & Infrastructure – Design build capable with information Assurance (IA) Certified Staff
- Training: PSG offers fully trained and certified staff:
